| Plaats van herkomst: | Changzhou, China |
| Merknaam: | trusTec |
| Certificering: | CE、UL529388 |
| Modelnummer: | YDK-375-6A27 |
| Min. bestelaantal: | 200 stuks |
|---|---|
| Prijs: | Negotiable (FOB/CNF/CIF) |
| Verpakking Details: | Standaard kartonnen verpakking, foamboard aan de binnenkant voor bescherming. |
| Levertijd: | 15 dagen verse producten na orderbevestiging. |
| Betalingscondities: | T/T, L/C |
| Levering vermogen: | 100, 000 stuks per maand |

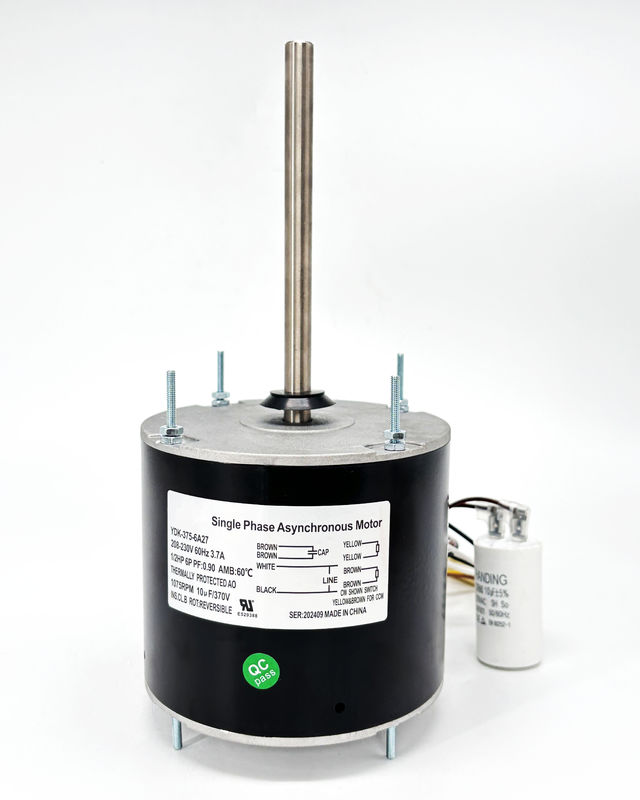

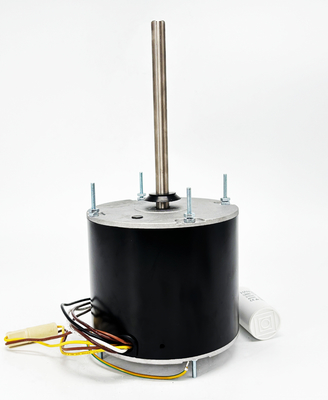

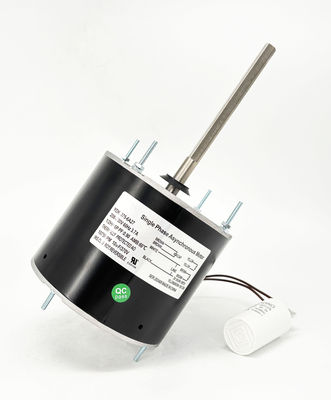

| Product: | Condenser Fan Motor | Frame: | Nema 48 |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped with an Automatic Thermal Overload | Current: | 3.7A |
| Phase: | Single Phase | Output HP: | 1/2HP |
| Shaft Flats: | Right Angle Flat | Rated Speed: | 1075RPM |
| Mounting Orientation: | All Angel | Shaft Length: | 6.5" / 165.1mm |
| Insulation Class: | Class B | Shaft Diameter: | 0.5" /12.7mm |
| Mounting: | Stud Mounting All Angel | Capacitor: | 10uF/370V |
| Bearings: | Ball Bearing | Flat Length: | 5.03" / 128mm |
| Rotation: | Reversible | Lead Length: | 27.5" / 700mm |
| Max. Ambient Temperature: | 60℃/140℉ | Screw length: | 1" / 25.4mm 0.53" / 13.5mm |
| Markeren: | 1075 rpm condensatorventilatormotor,48 Frame condensator ventilator motor,208-230V condensatorventilatormotor |
||
