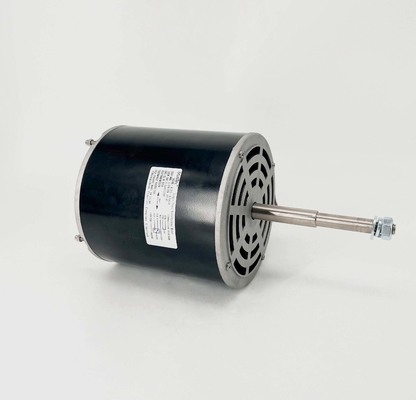

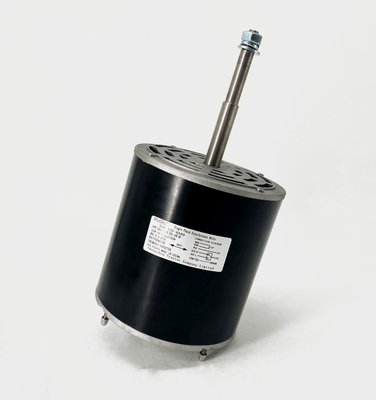

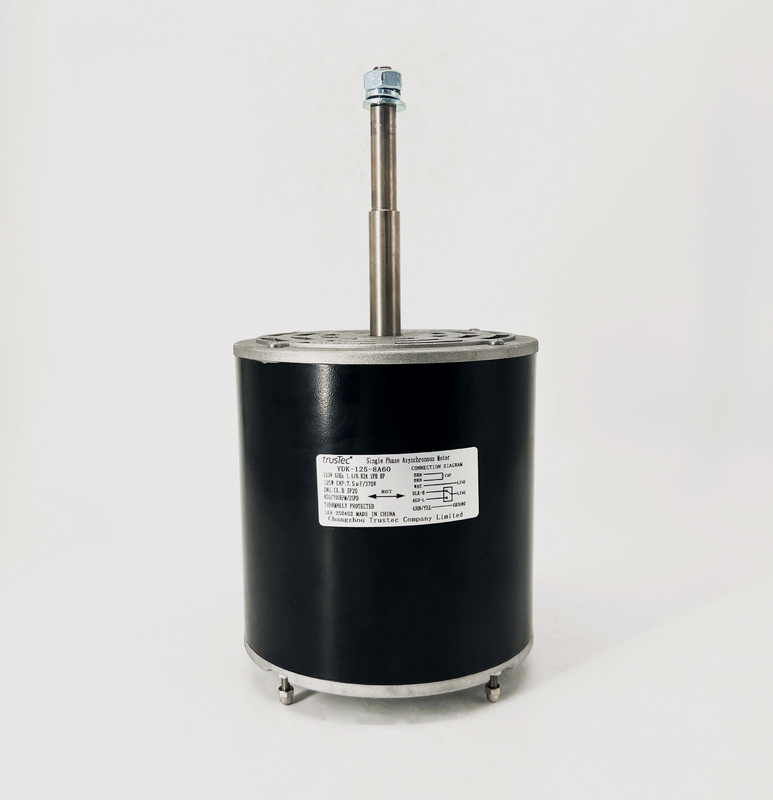

48 Frame ventilatormotor - 1/6 pk 220 V 60 Hz 850/700 tpm
Plaats van herkomst:Changzhou, China
Merknaam:trusTec
Certificering:CE、UL529388
Modelnummer:YDK-125-8A60-BMF
Minimale bestelhoeveelheid:200 stuks
Prijs:Negotiable (FOB/CNF/CIF)
Betalingsvoorwaarden:T/T, L/C
Leveringscapaciteit:100, 000 stuks per maand
Tags:
Productdetails
Markeren:
220 V ventilatormotor
,1/6 pk ventilatormotor
,700 RPM blaasventilatormotor
Product:
Condensorventilatormotor
Frame:
48 frame/143 mm
Motor Type:
Permanente gespleten condensator
Supply Voltage:
220V
Enclosure Type:
Oao (open lucht over)
Supply Frequency:
60 Hz
Thermal Overload:
Uitgerust met een automatische thermische overbelasting
Current:
1.1/0.82A
Phase:
Enkele fase
Output HP:
1/6 pk
Shaft Flat:
Eén plat
Speed:
850/700 RPM
Mounting Orientation:
Alle hoeken
Capacitor:
7.5uF/370V
Insulation Class:
Klasse B
Pole:
8P
Bearings:
Kogellager
Shaft Diameter:
0.591" / 15 mm
Rotation:
CW/CCW
Shaft Length:
4.685"/119mm
Flat Length:
1.496"/38mm
Max. Ambient Temperature:
40℃/104℉
Lead Length:
47.24"/1200mm
Motor Shell Length:
5.866"/149mm
Productbeschrijving
Productoverzicht
Gerelateerde producten
-
Directe de Motor115vac 1/4HP 1075/3RPM UL Goedkeuring van de Aandrijvingshvac Ventilator
Direct Drive Blower Motor - 115VAC 1/4HP 1075/3RPM - UL Approval Cross Reference CROSS REFERENCE TRUSTEC MOTOR.pdf TRUSTEC DESCRIPTION CENTURY/ AO SMITH FASCO GE/ GENTEQ US MOTORS/ EMERSON WAGNER YORK SOURCE 1 MARATHON MARS NORDYNE/ PARTNERS CHOICE PACKARD RHEEM/RUUD PROTECH CONDENSER FAN MOTORS CTM5-727 1/6HP 208-230V 1075/1 RPM FSE1016S D917 3727 1859 WG840727 S1-FHM3727 X411 10727 01-0160 43727 W51-16CJA1-01 CTM5-728 1/4HP 208-230V 1075/1 RPM FSE1026S D909 3728 1860
-
UL directe van de de Motor208~230vac 1/2HP 1075/3RPM Lucht van de Aandrijvingshvac Ventilator de Managermotor
Direct Drive Blower Motor - 208~230VAC 1/2HP 1075/3RPM - Air Handler Motor - UL Approval Direct Drive Blower Motor PCS Pernanent Split Capacitor Motor Type 1/6,1/5,1/4,1/3,1/2,or 3/4 Rated Horsepower Supply Voltage 115 or 208/230 VAC Supply Frequency 60 hertz Insulation Class B 825 or 1075rpm Rated Speed Run Capacitor 370 VAC10 to 20 μF Temperature Rating 60℃ / 140℉ Equipped with an automatic thermal overload Current 1.6 to 9.5 amps at rated speed and horsepower Open Air Over
-
Drie Motor van de Snelheidshvac de Centrifugaalventilator - 6cm/9cm Steunsteun
6cm/9cm bracket blower motor three Speed , HVAC Centrifugal Fan motor Product specification: Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered. Electrical parameters: Model YDK-150-6B Output Power 1/5HP Full load Amps 1.4A Frequency 50/60Hz Voltage 208-230V Speed 920/3 speed Insulation class B Structure ball bearing, with capacitor Product application: Condenser and condenser
-
Van de de Condensator Directe Aandrijving van PCs de Permanente Gespleten Motor van de de Ovenventilator 115VAC 280~230VAC 1/2HP 1075/3RPM
KEY FEATURES OF DIRECT DRIVE BLOWER MOTOR Direct Drive Blower Motor PCS Pernanent Split Capacitor Motor Type 1/6,1/5,1/4,1/3,1/2,or 3/4 Rated Horsepower Supply Voltage 115 or 208/230 VAC Supply Frequency 60 hertz Insulation Class B 825 or 1075rpm Rated Speed Run Capacitor 370 VAC10 to 20 μF Temperature Rating 60℃ / 140℉ Equipped with an automatic thermal overload Current 1.6 to 9.5 amps at rated speed and horsepower Open Air Over Frame 48 NEMA Ball Bearing Shaft Diameter 1/2"
