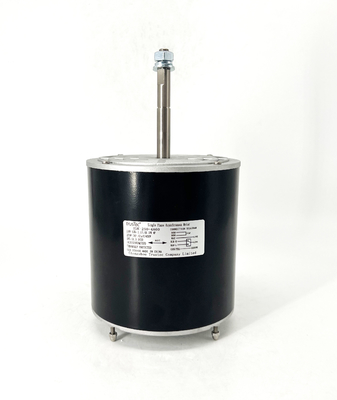

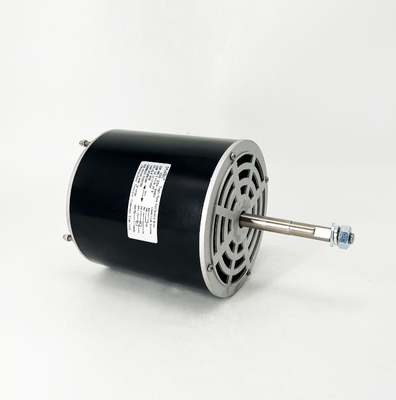

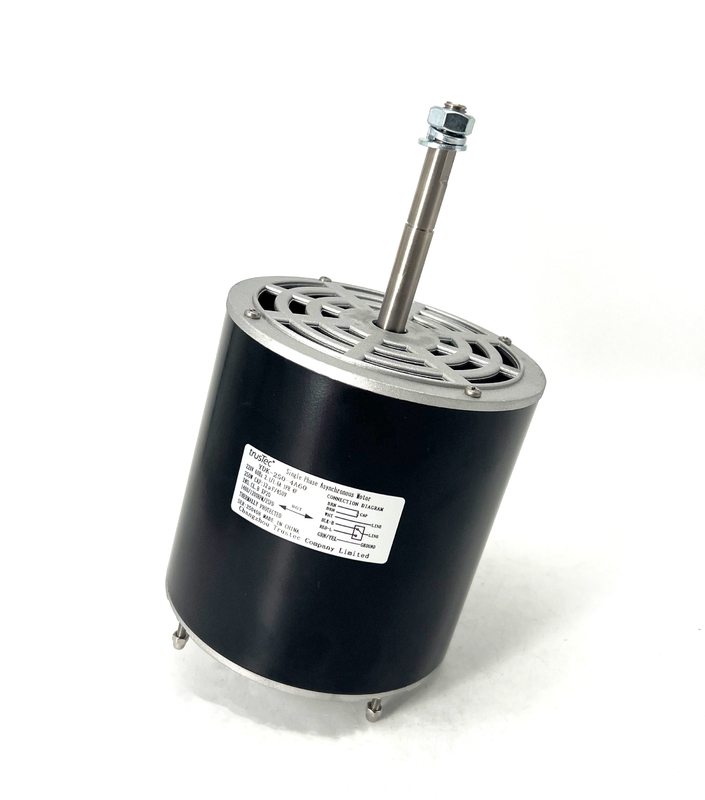

48 Frame Blower Fan Motor - 1/3HP 220V 60HZ 1400/1200RPM
Plaats van herkomst:Changzhou, China
Merknaam:trusTec
Certificering:CE、UL529388
Modelnummer:YDK-250-4A60-BMF
Minimale bestelhoeveelheid:200 stuks
Prijs:Negotiable (FOB/CNF/CIF)
Betalingsvoorwaarden:T/T, L/C
Leveringscapaciteit:100, 000 stuks per maand
Tags:
Productdetails
Markeren:
1/3 pk ventilatormotor
,220 V ventilatormotor
,1200 RPM blaasventilatormotor
Product:
de motor van de ventilatorventilator
Frame:
48 frame/143 mm
Motor Type:
Permanente gespleten condensator
Supply Voltage:
220V
Enclosure Type:
Oao (open lucht over)
Supply Frequency:
60 Hz
Thermal Overload:
Uitgerust met een automatische thermische overbelasting
Current:
2.1/1.6A
Phase:
Enkele fase
Output HP:
1/3 PK
Shaft Flat:
Eén plat
Speed:
1400/1200 RPM
Mounting Orientation:
Alle hoeken
Capacitor:
12uF/450V
Insulation Class:
Klasse B
Pole:
4P
Bearings:
Kogellager
Shaft Diameter:
12,7 mm/0,5"
Rotation:
CW/CCW
Shaft Length:
95mm/3.74"
Flat Length:
30 mm/1.181"
Max. Ambient Temperature:
40℃/104℉
Lead Length:
47.24"/1200mm
Motor Shell Length:
146 mm/5,75"
