TRUSTEC MOTOR UW VERTROUWDE FABRIEK
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Merknaam: | trusTec |
| Certificering: | CE、UL529388 |
| Model Number: | YDK120-72-6T3-DNW |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Prijs: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

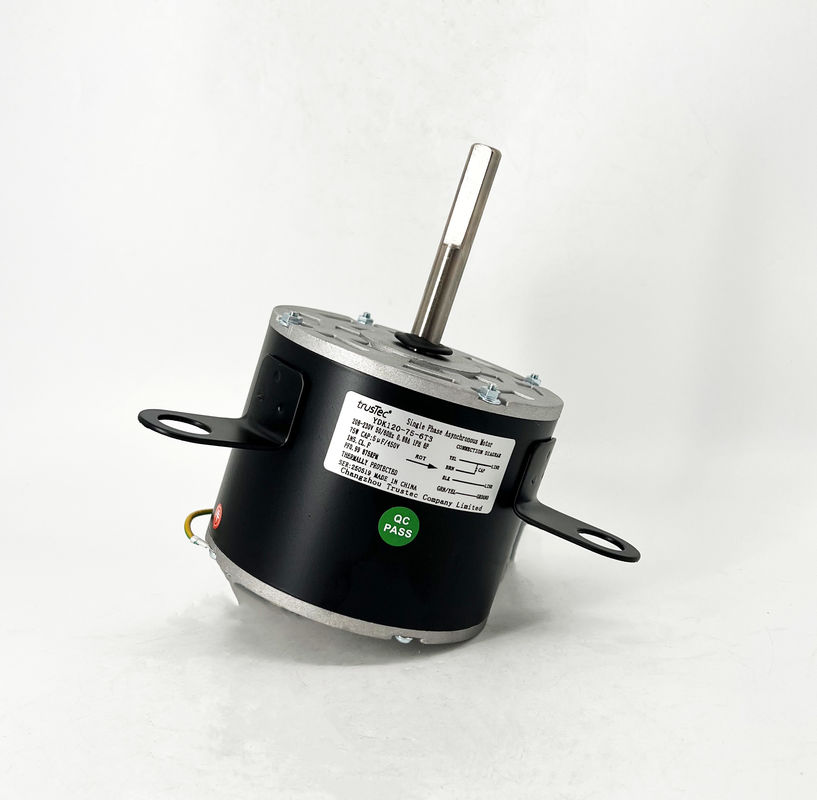

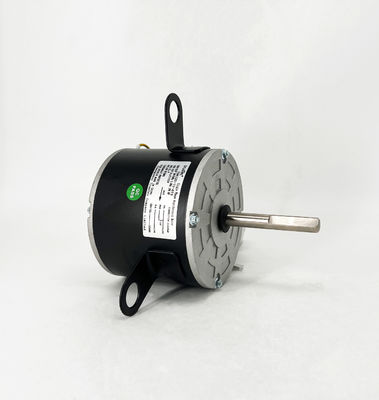

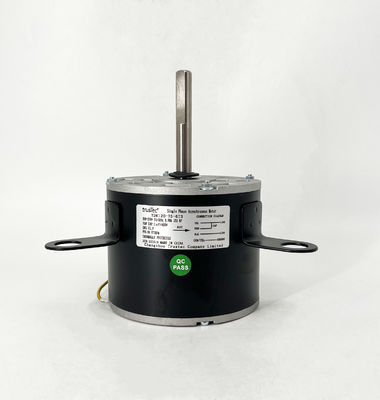

| Product: | Condenser Fan Motor | Frame: | 120mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50/60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.88A |
| Fase: | Eénfase | Output HP: | 75W |
| Schacht plat: | Eén flat. | Versnelling: | 875RPM |
| Montage-oriëntatie: | Alle hoeken | Capacitor: | 5uF/450V |
| Insulation Class: | Class F | Pole: | 6P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.5"/12.7mm |
| Rotatie: | CCW | PF: | 0.99 |
| Max. Ambient Temperature: | 70℃/158℉ | Lead Length: | 43.31"/1100mm |
| Markeren: | 50/60HZ condensatorventilatormotor,875 RPM condensatorventilatormotor,208-230V condensatorventilatormotor |
||
