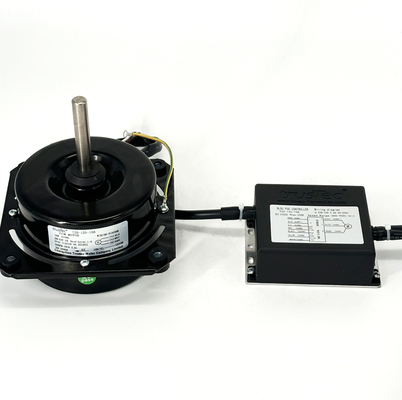

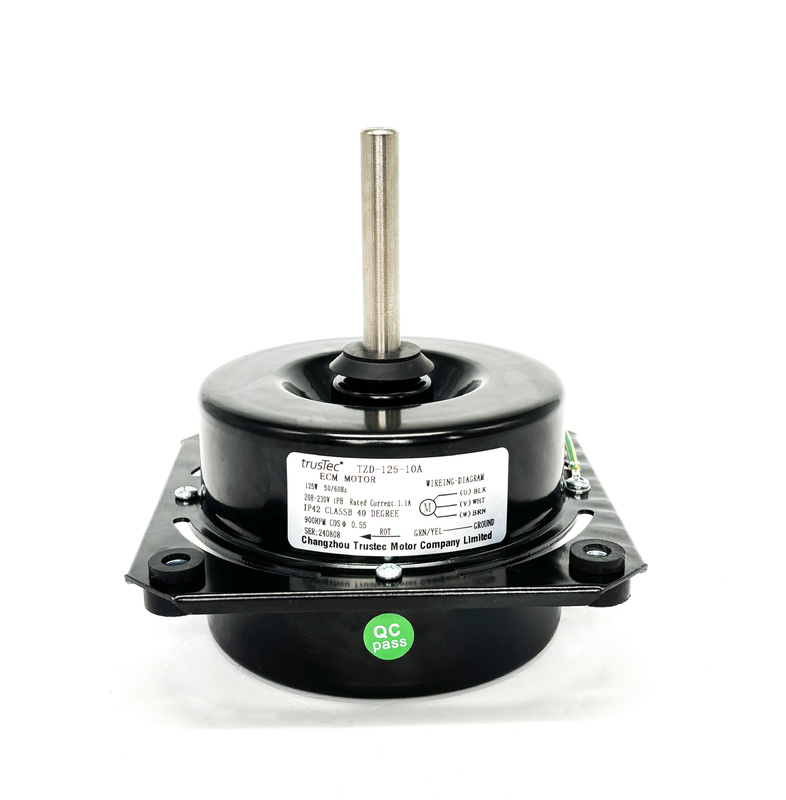

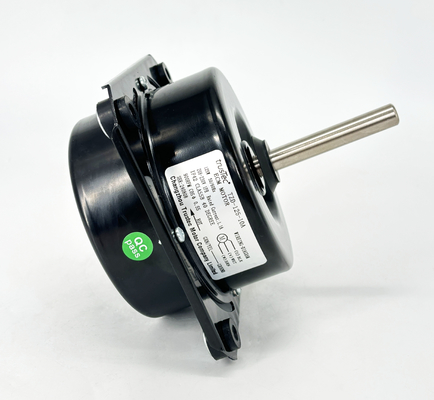

ECM-motor - 125W 900RPM 220V 50/60HZ 0-10V snelheidsregeling
Plaats van herkomst:Changzhou, China
Merknaam:trusTec
Certificering:CE
Modelnummer:TZD-125-10A-TVM
Minimale bestelhoeveelheid:200 stuks
Prijs:Negotiable (FOB/CNF/CIF)
Betalingsvoorwaarden:T/T, L/C
Leveringscapaciteit:100, 000 stuks per maand
Tags:
Productdetails
Markeren:
125W BLDC-motor
,900 RPM BLDC-motor
,220 V BLDC-motor
Product:
Elektronisch gecommuteerde motor (ECM)
Supply Voltage:
220 V
Enclosure Type:
TEAO ((Totaal afgesloten luchtover)
Supply Frequency:
50/60hz
Thermal Overload:
met een vermogen van niet meer dan 50 W
Current:
1.65A
Phase:
Eénfase
Output Power:
125W
Mounting:
Sted Montage All Angel
Speed:
900rpm
Bearings:
Koellagers
Poles:
10p
Mounting Orientation:
Alle hoeken
Shaft Length:
3.04" / 78mm
Insulation Class:
Klasse B
Frame Size:
120 mm
Max. Ambient Temperature:
40°C/104°F
Shaft Diameter:
1/2 inch / 12.7 mm
Rotation:
CCW ((SE)
Flat Length:
1.99" / 50mm
Speed Control:
0-10V VSP
Lead Length:
11.8" / 300 mm
Other:
FG en 10VDC
Productbeschrijving
Productoverzicht
