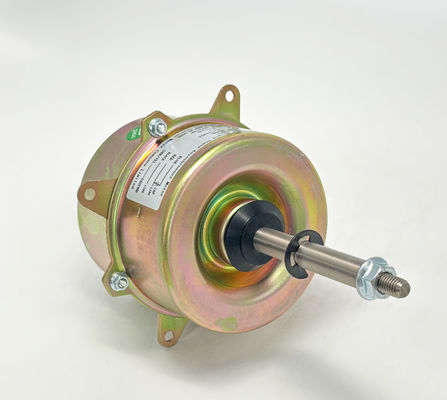

Buiten ventilator motor voor airconditioner - 55W 220/230V 50/60HZ
Plaats van herkomst:Changzhou, China
Merknaam:trusTec
Certificering:CE
Modelnummer:YDK55-6C3
Minimale bestelhoeveelheid:200 stuks
Prijs:Negotiable (FOB/CNF/CIF)
Betalingsvoorwaarden:T/T, L/C
Leveringscapaciteit:100, 000 stuks per maand
Tags:
Productdetails
Markeren:
Motor van de buitenventilator van de airconditioner
,55W buitenventilatormotor
,220/230V buitenventilatormotor
Product:
Buitenventilatormotor
Frame Size:
95MM
Motor Type:
Permanente gesplitste condensator
Supply Voltage:
220/230V
Enclosure Type:
TEAO ((Totaal afgesloten luchtover)
Supply Frequency:
50/60Hz
Thermal Overload:
met een vermogen van niet meer dan 50 W
Current:
0.6A
Phase:
Eénfase
Output Power:
55W
Mounting Orientation:
Alle Engel
Shaft Diameter:
0.47" / 12mm
Insulation Class:
Klasse F
Lead Length:
39.3" / 1000 mm
Mounting:
Sted Montage All Angel
Poles:
6P
Bearings:
Ballenlagers
Max. Ambient Temperature:
40°C/104°F
Rotation:
Reversibel
Capacitor:
4uF/370V
Productbeschrijving
Productoverzicht
Gerelateerde producten
-
Video
trusTec Motor - 78W 830RPM Outdoor Fan Motor 50/60HZ YDK78-6A ((4681A)
TrusTec Motor - 78W 830RPM Outdoor Fan Motor 50/60HZ YDK78-6A(4681A) Product Name Outdoor Fan Motor Voltage 208V-230V Frequency 60 Hz Output Power 78W Pole 6P AMPS 0.83A Speed 900RPM Capacitor 6μF/370V Insulation Class Class B Rotation CCW-SE Other protection THERMALLY PROTECTED Key Parameters Model Number Output Power /W Voltage /V Frequency /Hz Rated Speed /RPM Rated Current /A YDK78-6A(4681A) 78 208-230 60 830 0.83 Ps:all dimension can be customized according to customer
-
42 Frame Buitenventilator Motor - 85W 208-230V 50/60HZ 900RPM
-
Condensorventilator Motor - 90W 208-230V 50/60HZ 900RPM
-
Condensator ventilator motor 220-240V 50HZ 1/7HP 860RPM/3SPD Volledig afgesloten air over (TEAO) thermisch beschermde motoren
Product Name Condenser Fan Motor Voltage 220V-240V Frequency 50Hz Output Power 1/7HP Pole 6P AMPS 1.47A Speed 860RPM/3SPD Capacitor 6μF/370V Insulation Class Class B Power Factor 0.9 Other protection THERMALLY PROTECTED Key Parameters Model Power /W Frequency /Hz Speed /RPM Rated Current /A Voltage /V YDK-115-6A2 1/7 HP 50 860/3SPD 1.47 220-240 Ps:all dimension can be customized according to customer requirement. Product Features 1. Use NSK low noise high quality rolling
