Plaats van herkomst: | Changzhou, China |
Merknaam: | trusTec |
Certificering: | CE、UL529388 |
Modelnummer: | YDK120-90-4B60-USM |
Min. bestelaantal: | 200 stuks |
---|---|
Prijs: | Negotiable (FOB/CNF/CIF) |
Verpakking Details: | Standaard kartonnen verpakking, foamboard aan de binnenkant voor bescherming. |
Levertijd: | 15 dagen verse producten na orderbevestiging. |
Betalingscondities: | T/T, L/C |
Levering vermogen: | 100, 000 stuks per maand |

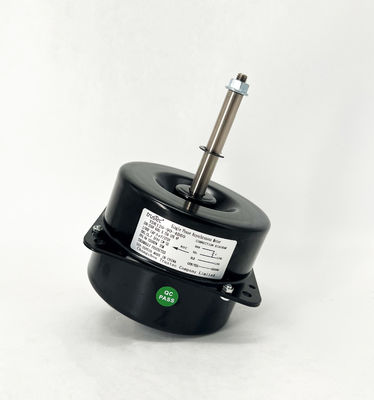

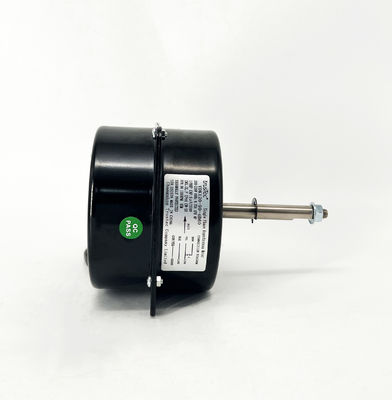

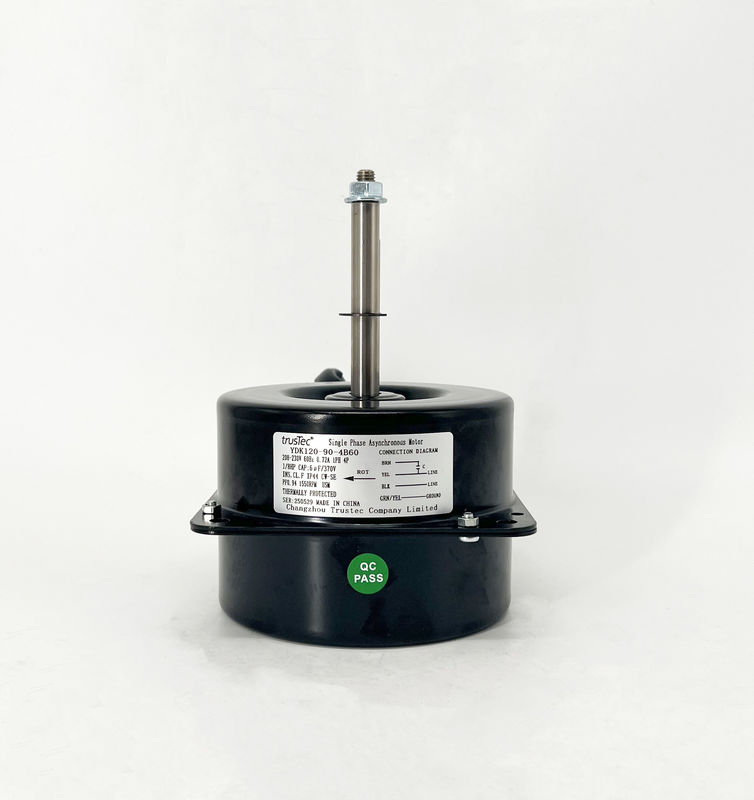

Product: | AC Fan Coil Unit Motor | Frame: | 143mm |
---|---|---|---|
Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.72A |
Phase: | Single Phase | Output HP: | 1/8HP |
Shaft Flat: | One Flat | Speed: | 1550RPM |
Mounting Orientation: | All Angle | Capacitor: | 6uF/370V |
Insulation Class: | Class F | Pole: | 4P |
Bearings: | Ball Bearing | Shaft Diameter: | 12mm/0.47" |
PF: | 0.94 | Rotation: | CW-SE |
Flat Length: | 28.5mm/1.12" | Max. Ambient Temperature: | 70℃/158℉ |
Lead Length: | 750mm/29.53" |
