TRUSTEC MOTOR UW VERTROUWDE FABRIEK
Sales & Support:

|
| Plaats van herkomst: | Changzhou, China |
| Merknaam: | trusTec |
| Certificering: | CE、UL529388 |
| Modelnummer: | YDK-1250-6B57-USS |
| Min. bestelaantal: | 200 stuks |
|---|---|
| Prijs: | Negotiable (FOB/CNF/CIF) |
| Verpakking Details: | Standaard kartonnen verpakking, foamboard aan de binnenkant voor bescherming. |
| Levertijd: | 15 dagen verse producten na orderbevestiging. |
| Betalingscondities: | T/T, L/C |
| Levering vermogen: | 100, 000 stuks per maand |

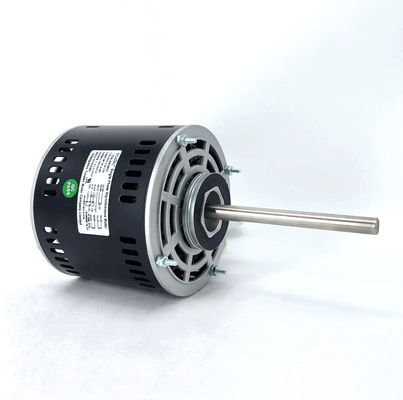

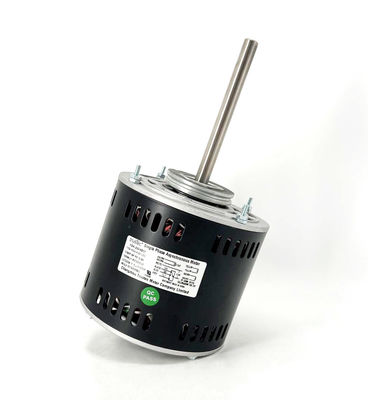

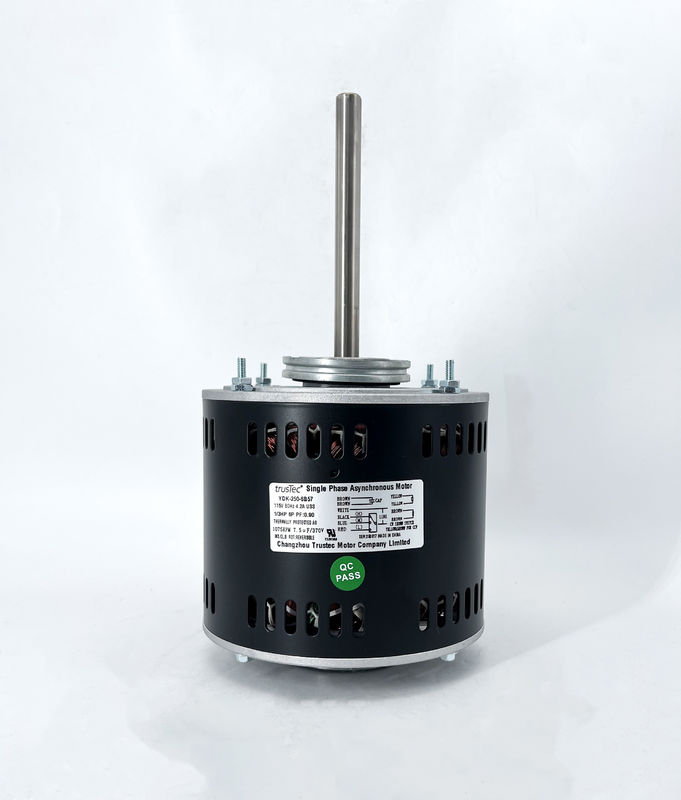

| Product: | Blower Fan Motor | Frame: | Nema 48 |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 115V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 4.2A |
| Phase: | Single Phase | Output HP: | 1/3HP |
| Shaft Flat: | Right Angle Flat | Speed: | 1075RPM/3SPD |
| Mounting Orientation: | All Angle | Capacitor: | 7.5uF/370V |
| Insulation Class: | Class B | Pole: | 6P |
| Bearings: | Ball Bearing | Shaft Diameter: | 12.7mm/0.5" |
| Rotation: | CW/CCW | Flat Length: | 101.6mm/4" |
| Max. Ambient Temperature: | 50℃/122℉ | Lead Length: | 300mm/11.81" |
| Motor Shell Length: | 112mm/4.41" | Screw Length: | 14mm/0.55" |
| Shaft Length: | 276mm/10.87" |
