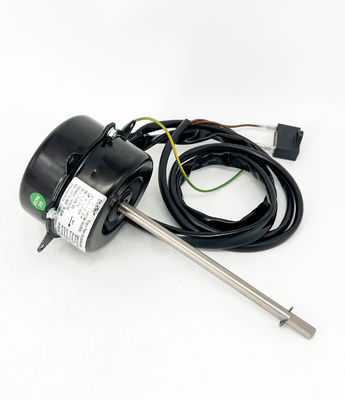

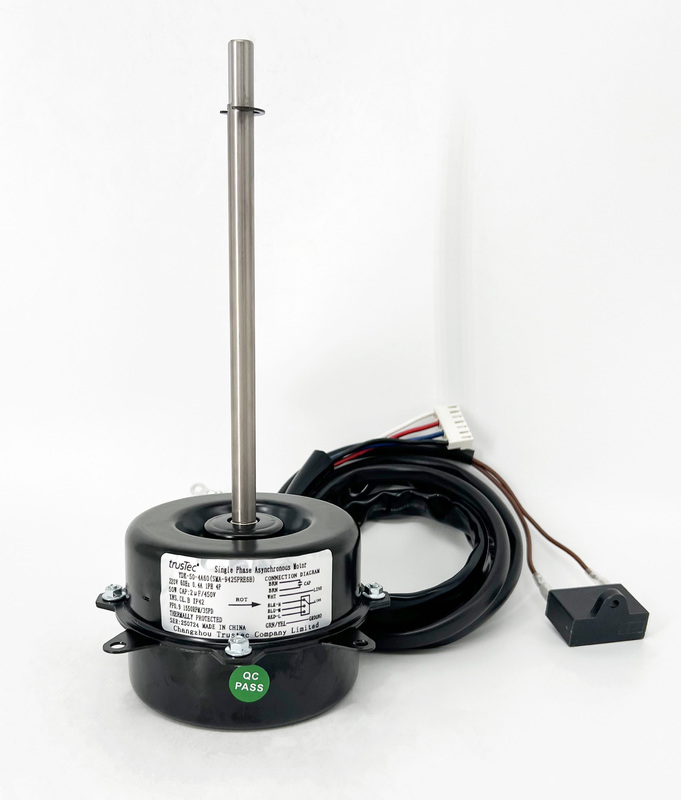

TRUSTEC MOTOR UW VERTROUWDE FABRIEK
Sales & Support:
 |
| Plaats van herkomst: | Jiangsu, China |
| Merknaam: | trusTec |
| Modelnummer: | YDK-50-4A60-kpm |
| Min. bestelaantal: | 200 |
|---|---|
| Prijs: | $13.39-14.49 |
| AC -spanning: | 220V | Nominale kracht: | 50W |
|---|---|---|---|
| Nominale snelheid: | 1550rpm/3SPD | Framegrootte: | 95 mm |
| Motorype: | Permanente split -condensator | Bekledingstype: | TEAO (Totaal afgesloten luchtover) |
| Fase: | Enkele fase | Schachtdiameter: | 1/2 inch / 12.7 mm |
| SHAFT VLOTE LENGTE: | 0,82 " / 21 mm | Lengte van de motorschaal: | 9,96 " / 253 mm |
| Loodlengte: | 17.71 " / 450 mm | Rotatierichting: | CCWSE |
| Leveringsfrequentie: | 60Hz | Huidig: | 0,4a |
| Pool: | 4P | ||

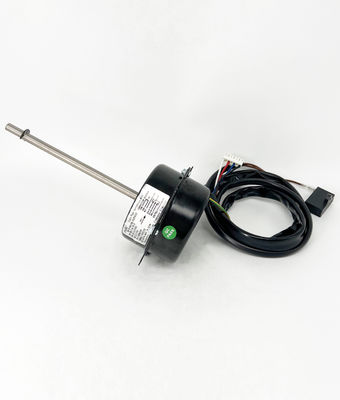

| Markeren: | 50W AC Indoor Fan Motor,1550RPM/3SPD Air Conditioner Fan Motor,220V HVAC Fan Motor |
||
| Product | Indoor Fan Motor |
|---|---|
| Motor Type | Permanent Split Capacitor |
| Enclosure Type | TEAO (Totally Enclosed Air Over) |
| Thermal Overload | Equipped With An Automatic Thermal Overload |
| Phase | Single Phase |
| Shaft Flats | One Flat |
| Mounting Orientation | All Angle |
| Bearings | Ball Bearing |
| Mounting | Stud Mounting All Angel |
| Max. Ambient Temperature | 40℃/104℉ |
| Frame | 95mm |
| Supply Voltage | 220V |
| Supply Frequency | 60Hz |
| Current | 0.4A |
| Output HP | 50W |
| Rated Speed | 1550RPM/3SPD |
| Pole | 4P |
| IP | 42 |
| Capacitor | 2uF/450V |
| Insulation Class | Class B |
| Shaft Diameter | 1/2" / 12.7mm |
| Flat Length | 0.82" /21mm |
| Motor Shell Length | 9.96" / 253mm |
| Lead Length | 17.71" / 450mm |
| Rotation | CCWSE |
