TRUSTEC MOTOR UW VERTROUWDE FABRIEK
Sales & Support:
 |
| Plaats van herkomst: | Jiangsu, China |
| Merknaam: | trusTec |
| Modelnummer: | TZS-600-10A2-NLR |
| Min. bestelaantal: | 200 |
|---|---|
| Prijs: | $228.70-230.10 |
| Continue stroom: | 5.25A | Efficiëntie: | 3 |
|---|---|---|---|
| Snelheid: | 925rpm | Framegrootte: | 143 mm |
| Motormontage: | Voetmontage | Nominale kracht: | 220-240W |
| Nominale spanning: | 220-240V | Motorype: | Condensor ventilatormotor |
| Bekledingstype: | TEAO | Fase: | Enkele fase |
| Schachtdiameter: | 12,7 mm | Aslengte: | 98.5 mm |
| Max Ambient Temperature: | 40 ℃ | Controlemodus: | PWM |
| Palen: | 10p | ||
| Markeren: | 600W EC Condenser Fan Motor,220-240V Air Conditioner Fan Motor,50/60HZ HVAC Fan Motor |
||

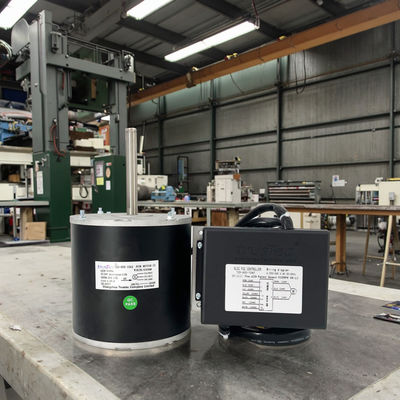

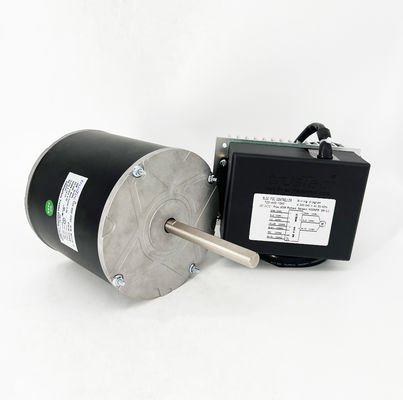

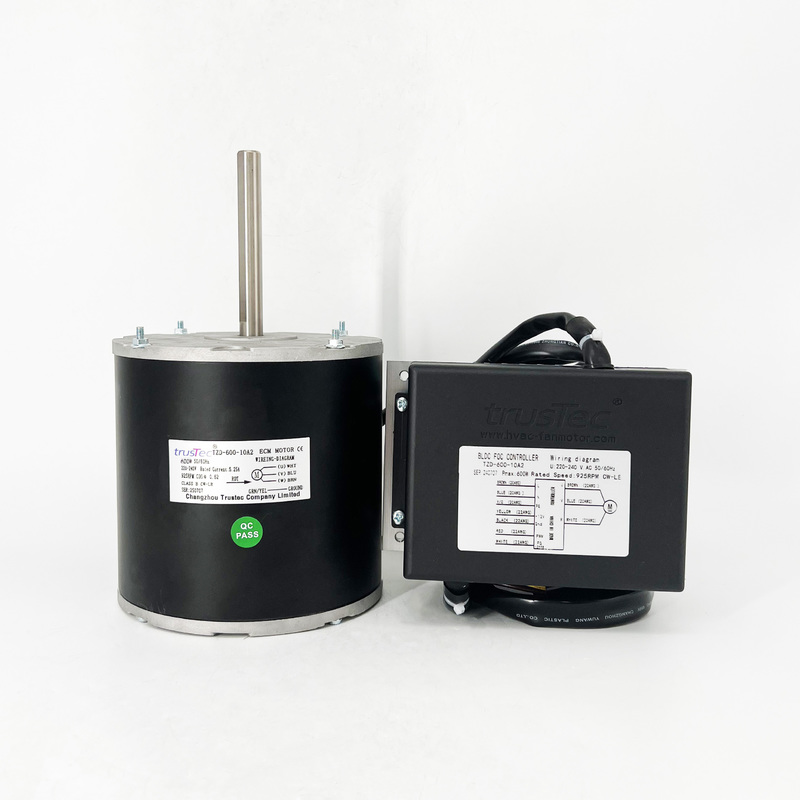

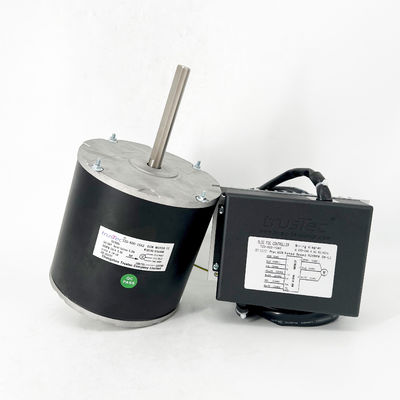

This high-efficiency EC condenser fan motor delivers reliable performance for air conditioning units with its advanced electronically commutated technology and durable construction.
| Feature | Specification |
|---|---|
| Motor Type | Condenser Fan Motor |
| Enclosure Type | TEAO (Totally Enclosed Air Over) |
| Thermal Protection | Automatic Thermal Overload |
| Phase | Single Phase |
| Mounting | Stud Mounting All Angle |
| Bearings | Ball Bearing |
| Supply Voltage | 220-240V |
| Supply Frequency | 50/60HZ |
| Current | 5.25A |
| Output Power | 220-240W |
| Rated Speed | 925RPM |
| Frame Size | 5.6" / 143mm |
| Shaft Diameter | 0.5" / 12.7mm |
| Shaft Length | 3.87" / 98.5mm |
| Flat Length | 3.54" / 90mm |
| Motor Shell Length | 5.47" / 139mm |
| Lead Length | 19.69" / 500mm |
| Max. Ambient Temperature | 40℃/104℉ |
| Control Mode | PWM |
| Poles | 10P |
| Rotation | CW-LE |
| Insulation Class | Class B |
Contactpersoon: Selena Chai
Tel.: +86-13961191626
Fax: 86-519-85109398
