TRUSTEC MOTOR UW VERTROUWDE FABRIEK
Sales & Support:
 |
| Plaats van herkomst: | Jiangsu, China |
| Merknaam: | trusTec |
| Modelnummer: | YSK-120-4A2-SGR |
| Min. bestelaantal: | 200 |
|---|---|
| Prijs: | $20.98-21.60 |
| AC -spanning: | 220-240V | Nominale kracht: | 120W |
|---|---|---|---|
| Nominale snelheid: | 1300 RPM/3SPD | Framegrootte: | 123 mm |
| Motorype: | Permanente split -condensator | Bekledingstype: | TEAO |
| Fase: | Enkele fase | Schachtdiameter: | 12,7 mm |
| Aslengte: | 570mm | Vlakke lengte: | 150 mm |
| Lengte van de motorschaal: | 103 mm | Loodlengte: | 1300 mm |
| Huidig: | 1.1A | Isolatieklasse: | Klasse B |
| IP -beoordeling: | 42 | ||
| Markeren: | 123mm Frame Fan Coil Unit Motor,24 Months Warranty Air Conditioner Fan Motor,40℃ Max Ambient Temperature AC Motor |
||

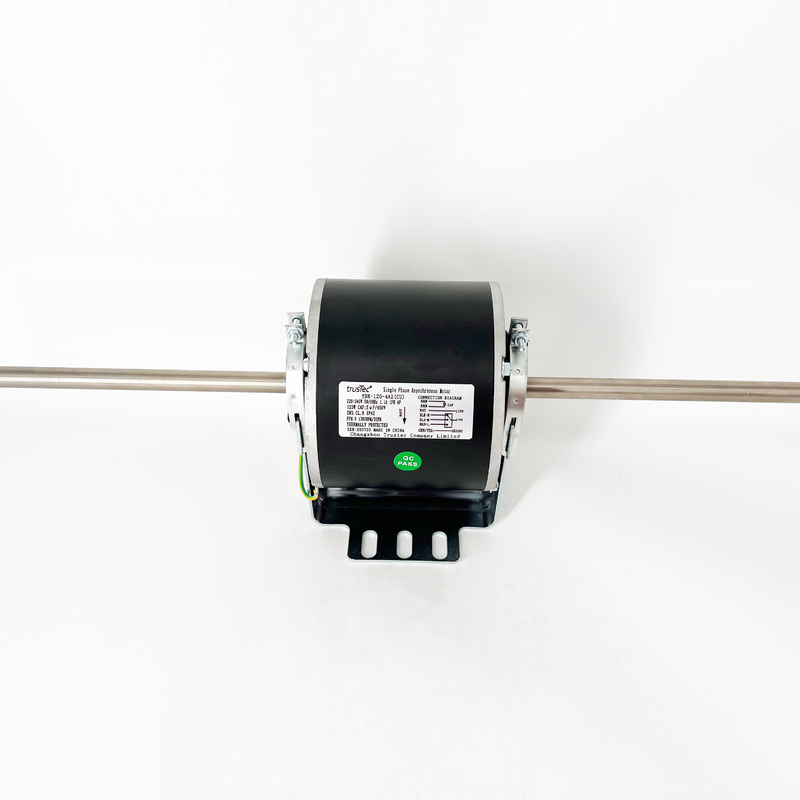

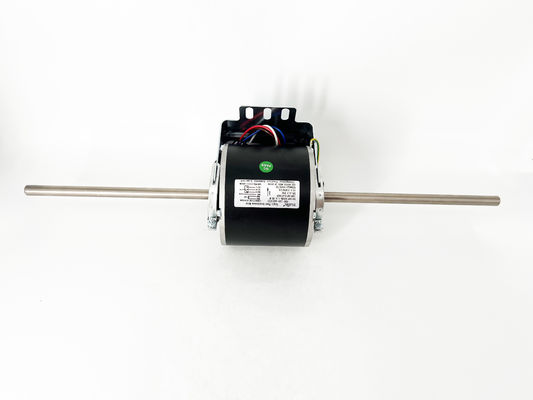

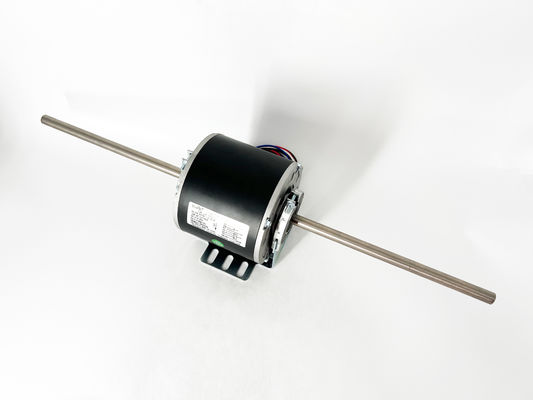

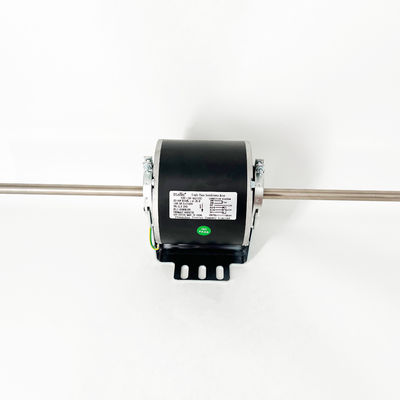

| Product | Fan Coil Unit Motor |
|---|---|
| Motor Type | Permanent Split Capacitor |
| Enclosure Type | TEAO (Totally Enclosed Air Over) |
| Thermal Overload | Equipped With An Automatic Thermal Overload |
| Phase | Single Phase |
| Shaft Flats | One Flat |
| Mounting Orientation | All Angle |
| Bearings | Ball Bearing |
| Mounting | Stud Mounting All Angel |
| Max. Ambient Temperature | 40℃/104℉ |
| Frame | 123mm |
| Supply Voltage | 220-240V |
| Supply Frequency | 50/60Hz |
| Current | 1.1A |
| Output HP | 120W |
| Rated Speed | 1300RPM/3SPD |
| Pole | 4P |
| IP | 42 |
| Capacitor | 5uF/450V |
| Insulation Class | Class B |
| Rotation | CW-LE |
| Shaft Length | 22.4" / 570mm |
| Shaft Diameter | 0.5" / 12.7mm |
| Flat Length | 5.9" / 150mm |
| Motor Shell Length | 4.05" / 103mm |
| Lead Length | 51.18" / 1300mm |
