TRUSTEC MOTOR UW VERTROUWDE FABRIEK
Sales & Support:

|
| Place of Origin: | Changzhou, China |
| Merknaam: | trusTec |
| Certificering: | CE、UL529388 |
| Model Number: | YSK-400-4A60-EVT |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Prijs: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

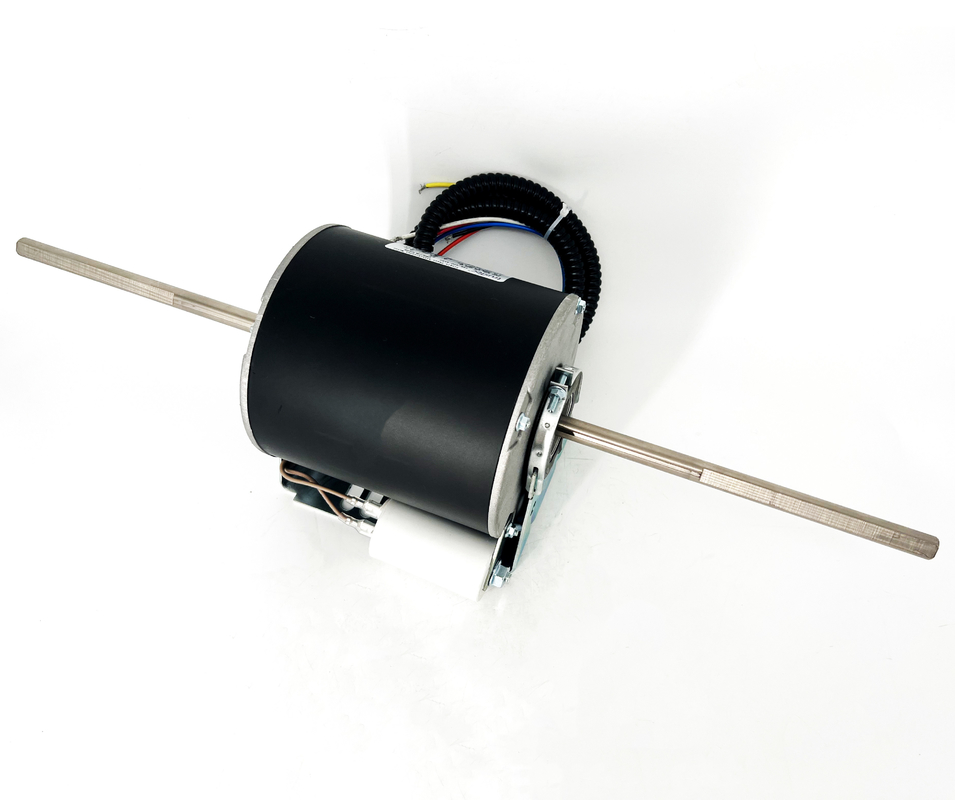

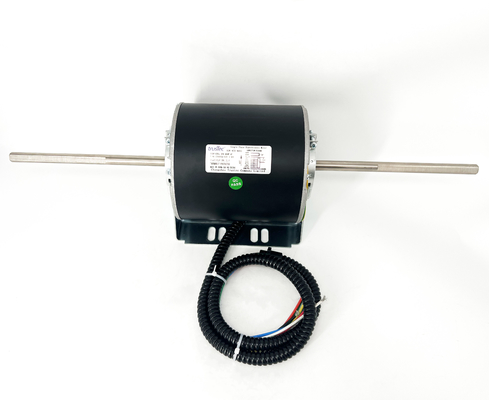

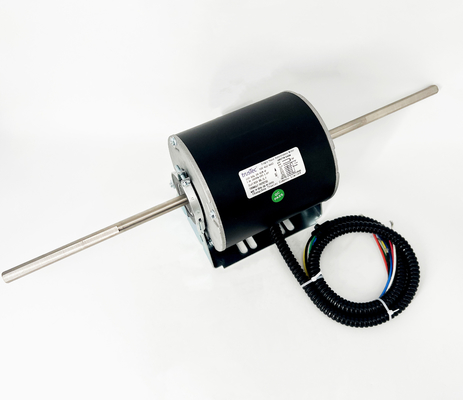

| Product: | AC Fan Coil Unit Motor | Frame: | 142mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 3.9A |
| Phase: | Single Phase | Output HP: | 400W |
| Shaft Flat: | One Flat | Speed: | 1280RPM/6SPD |
| Mounting Orientation: | All Angle | Capacitor: | 15uF/450V |
| Insulation Class: | Class F | Pole: | 4P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.5"/12.7mm |
| PF: | 0.9 | Shaft Length: | 7.87"/200mm*2 |
| Rotation: | CW-LE | Flat Length: | 4.72"/120mm*2 |
| Max. Ambient Temperature: | 70℃/158℉ | Lead Length: | 41.43"/1050mm |
| Motor Shell Length: | 6.63"/168.5mm |
Contactpersoon: Selena Chai
Tel.: +86-13961191626
Fax: 86-519-85109398
